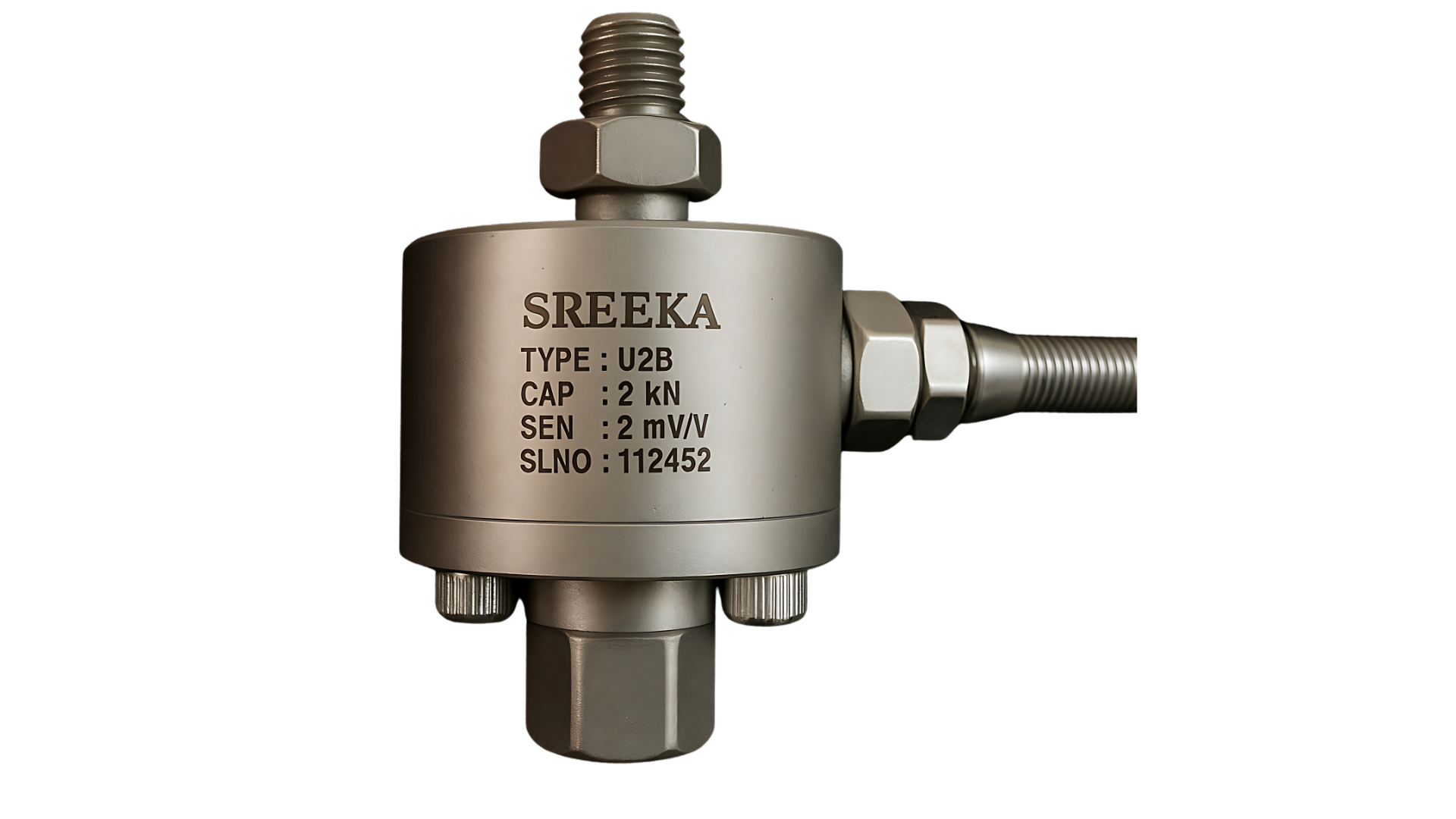

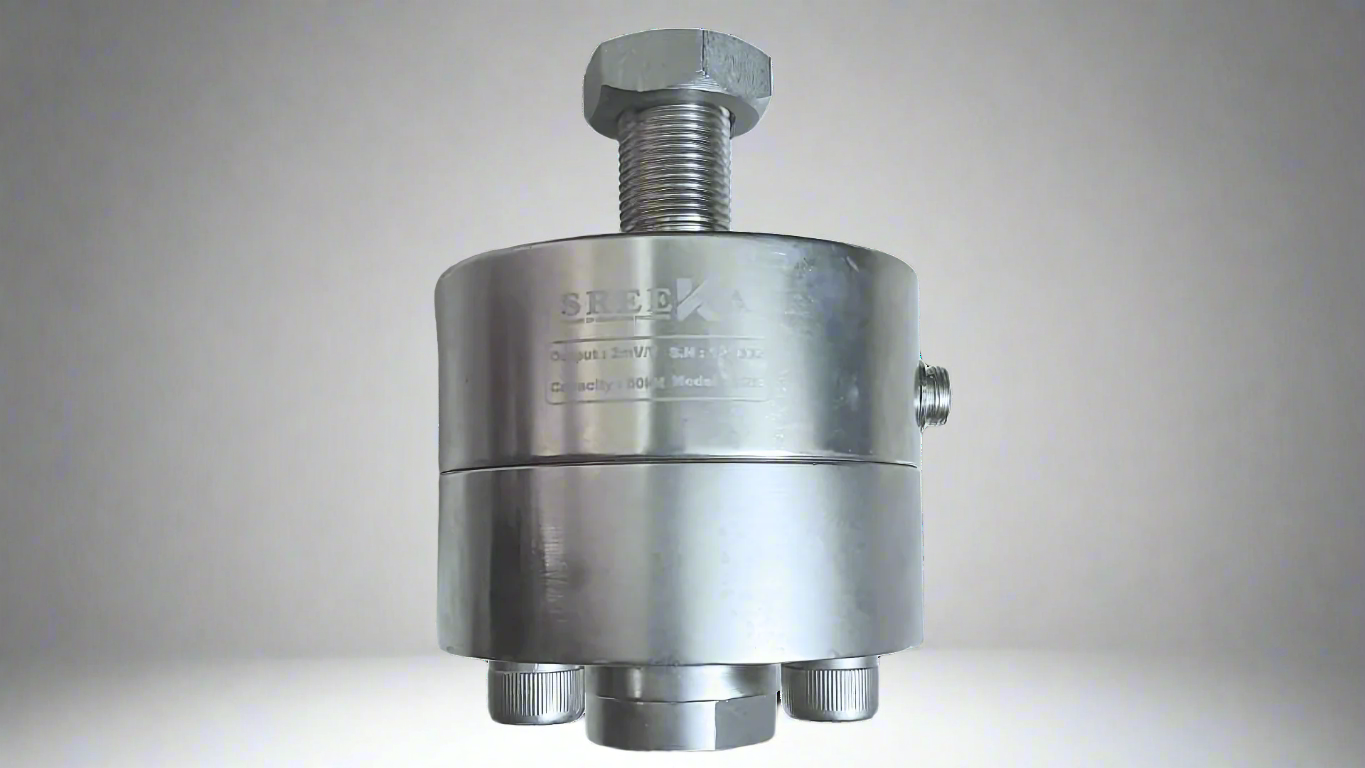

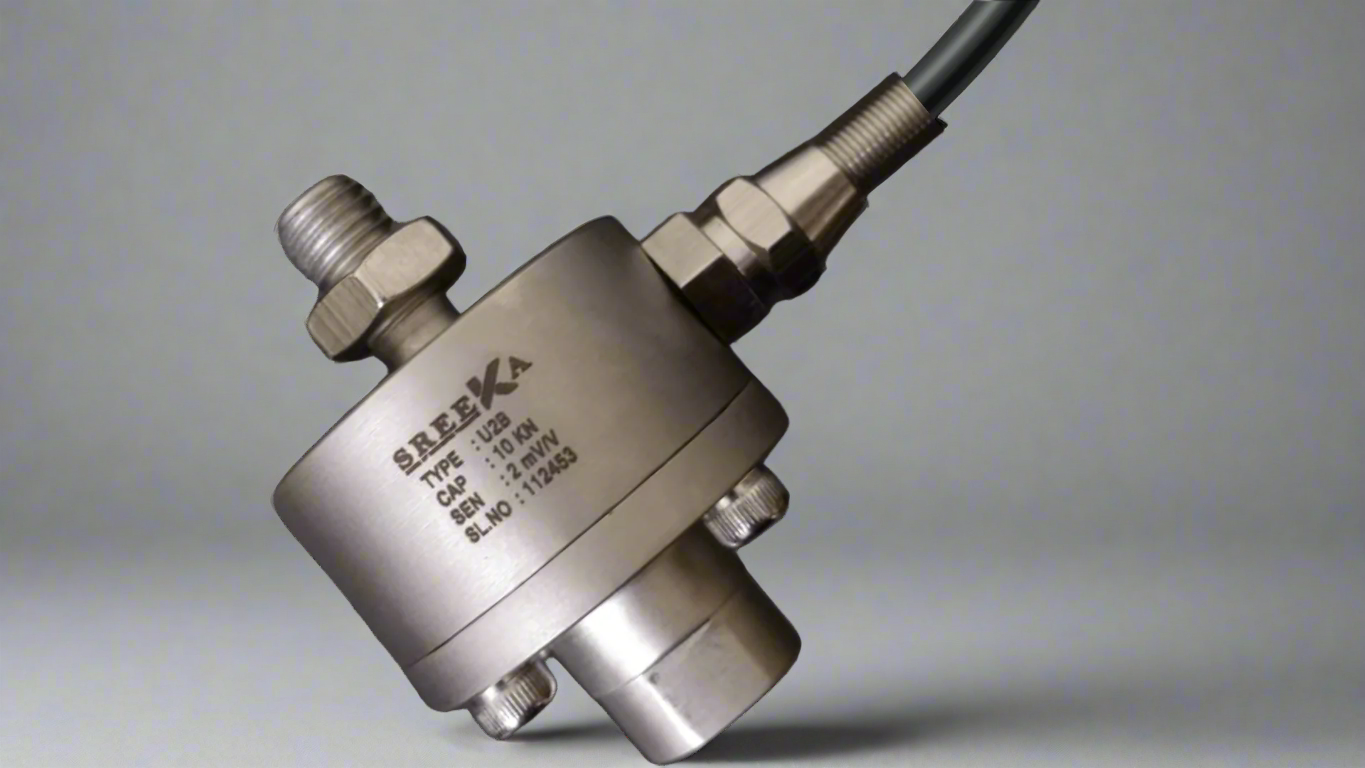

The U2B is a high-performance load cell designed for both tension and compression force measurement. Built with stainless steel and sealed to withstand harsh environments, it's ideal for platform scales, silo weighing, and other industrial applications. Its compact design and proven reliability make it a preferred choice in demanding environments where precision and durability matter.
| Parameter | Value |
|---|---|
| Capacity Range |
0.5kN to 200kN |
| Sensitivity | 2.0 mV/V |
| Accuracy |
0.02% |
| Overload Capacity | 150 to 300% of rated output |
| Protection Class | IP67 |
| Material | Stainless Steel |
U2B Load Cell Data Sheet
The U2B is a high-performance load cell designed for both tension and compression force measurement. Built with stainless steel and sealed to withstand harsh environments, it's ideal for platform scales, silo weighing, and other industrial applications. Its compact design and proven reliability make it a preferred choice in demanding environments where precision and durability matter.
| Parameter | Value |
|---|---|
| Capacity Range |
0.5kN to 200kN |
| Sensitivity | 2.0 mV/V |
| Accuracy |
0.02% |
| Overload Capacity | 150 to 300% of rated output |
| Protection Class | IP67 |
| Material | Stainless Steel |
U2B Load Cell Data Sheet
The U2B is a high-performance load cell designed for both tension and compression force measurement. Built with stainless steel and sealed to withstand harsh environments, it's ideal for platform scales, silo weighing, and other industrial applications. Its compact design and proven reliability make it a preferred choice in demanding environments where precision and durability matter.
| Parameter | Value |
|---|---|
| Capacity Range |
0.5kN to 200kN |
| Sensitivity | 2.0 mV/V |
| Accuracy |
0.02% |
| Overload Capacity | 150 to 300% of rated output |
| Protection Class | IP67 |
| Material | Stainless Steel |
U2B Load Cell Data Sheet
