| Parameter | Value |
|---|---|
| Capacity |
5kN, 10kN, 50KN, 75kN, Minature and Custom capacity |
| Nominal Sensitivity | 2.0 mV/V |
| Linearity |
0.02% |
| Excitation | 2 - 10 VDC |
| Shape | S Type, S Beam |
| Material | Alloy, Stainless Steel |

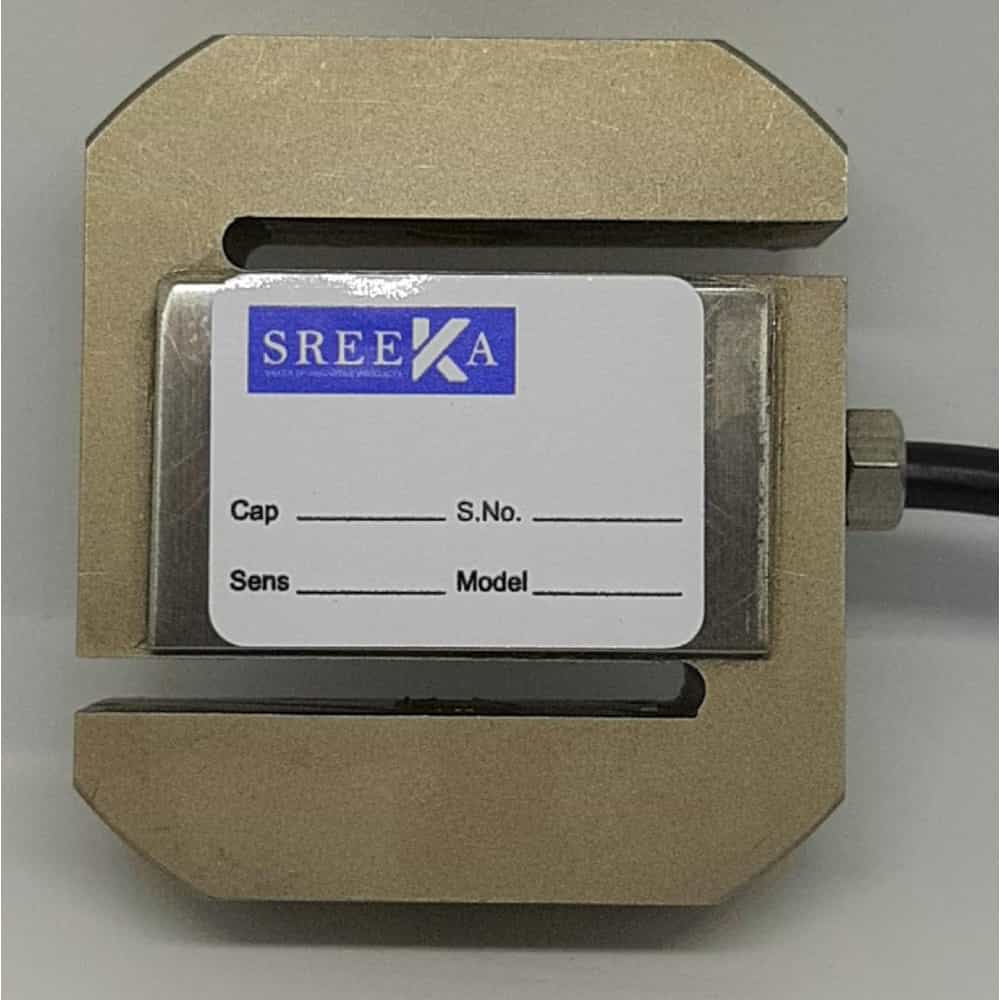

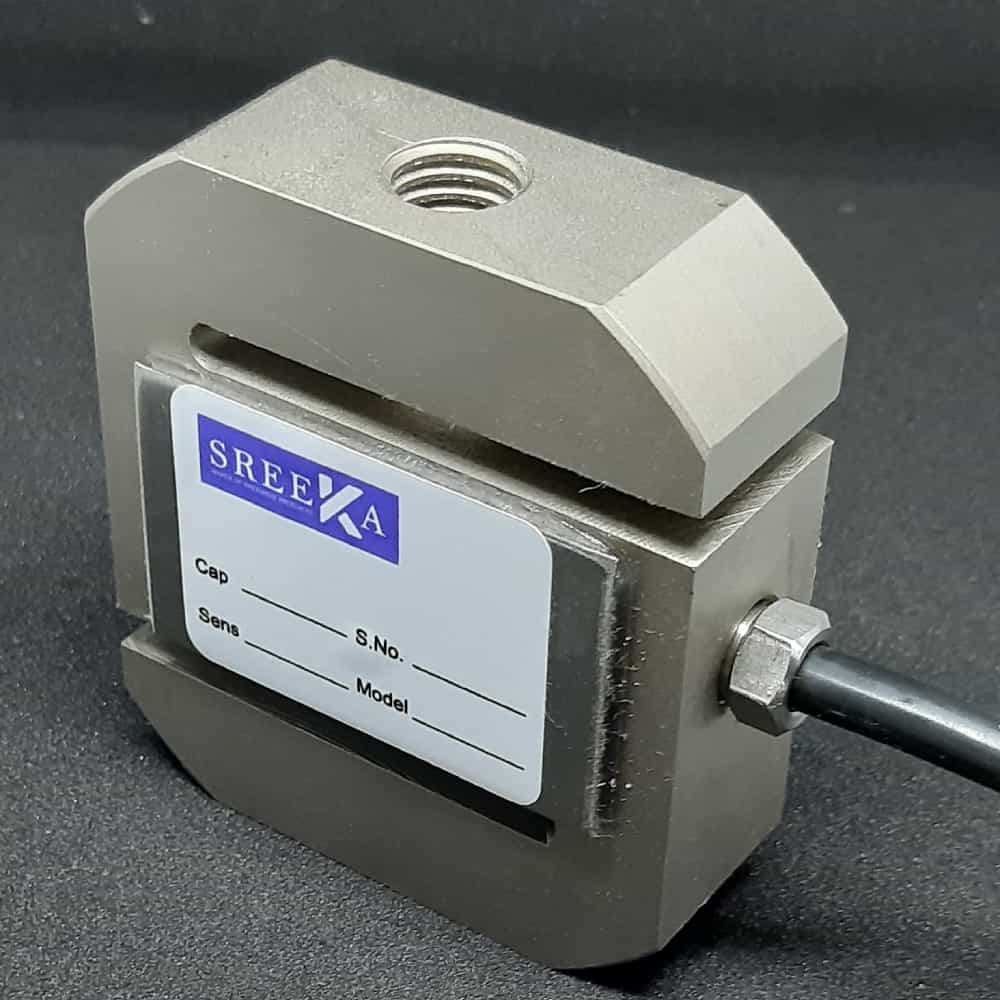

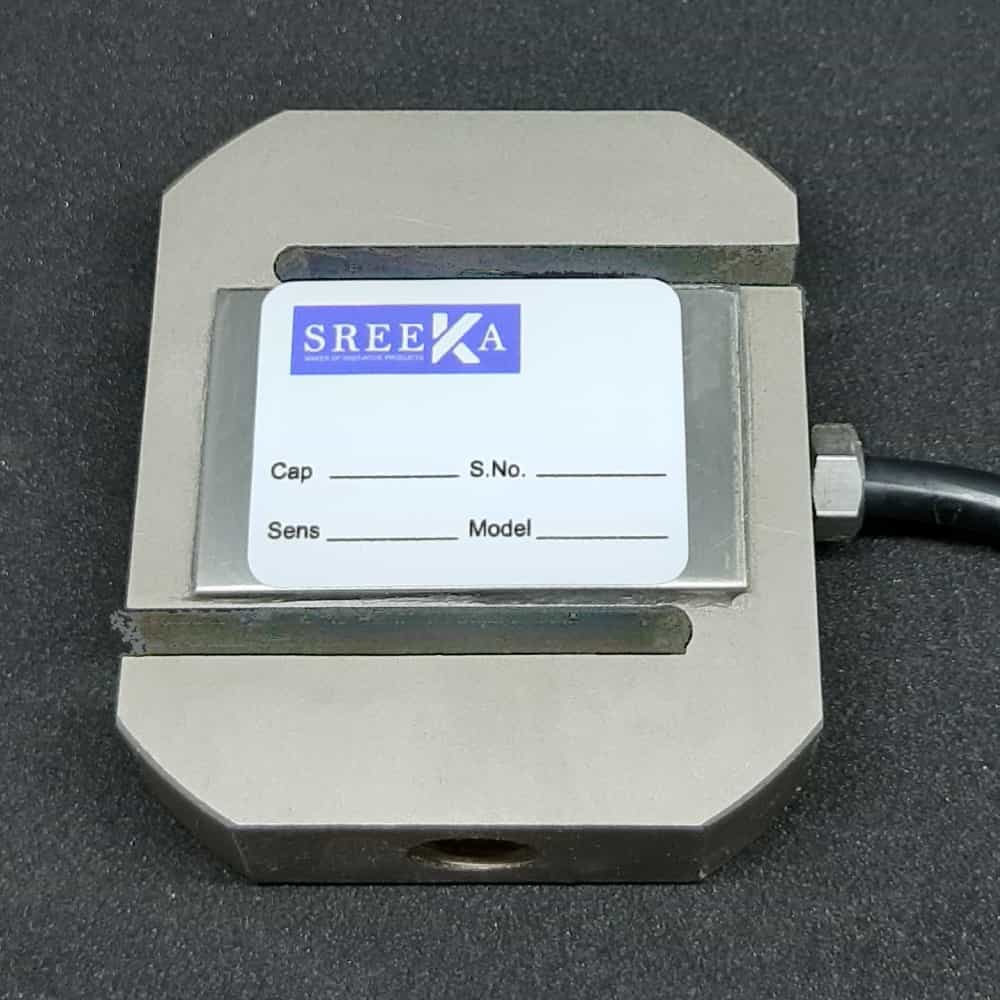

S type load cell is an affordable, simple and easy to use entry level load cell category. It senses force in both tension and compression. Very accurate and highly accurate even suitable for calibration application. There are other variants suits to various applications are available like shape and miniature size.
There is a slight variation in the shape of the load cell from the standard S Type load cell.
- Most preferred in low range capacity
- Robust
- Measures both in tension and compression
- Accurate
S type load cell data sheet
