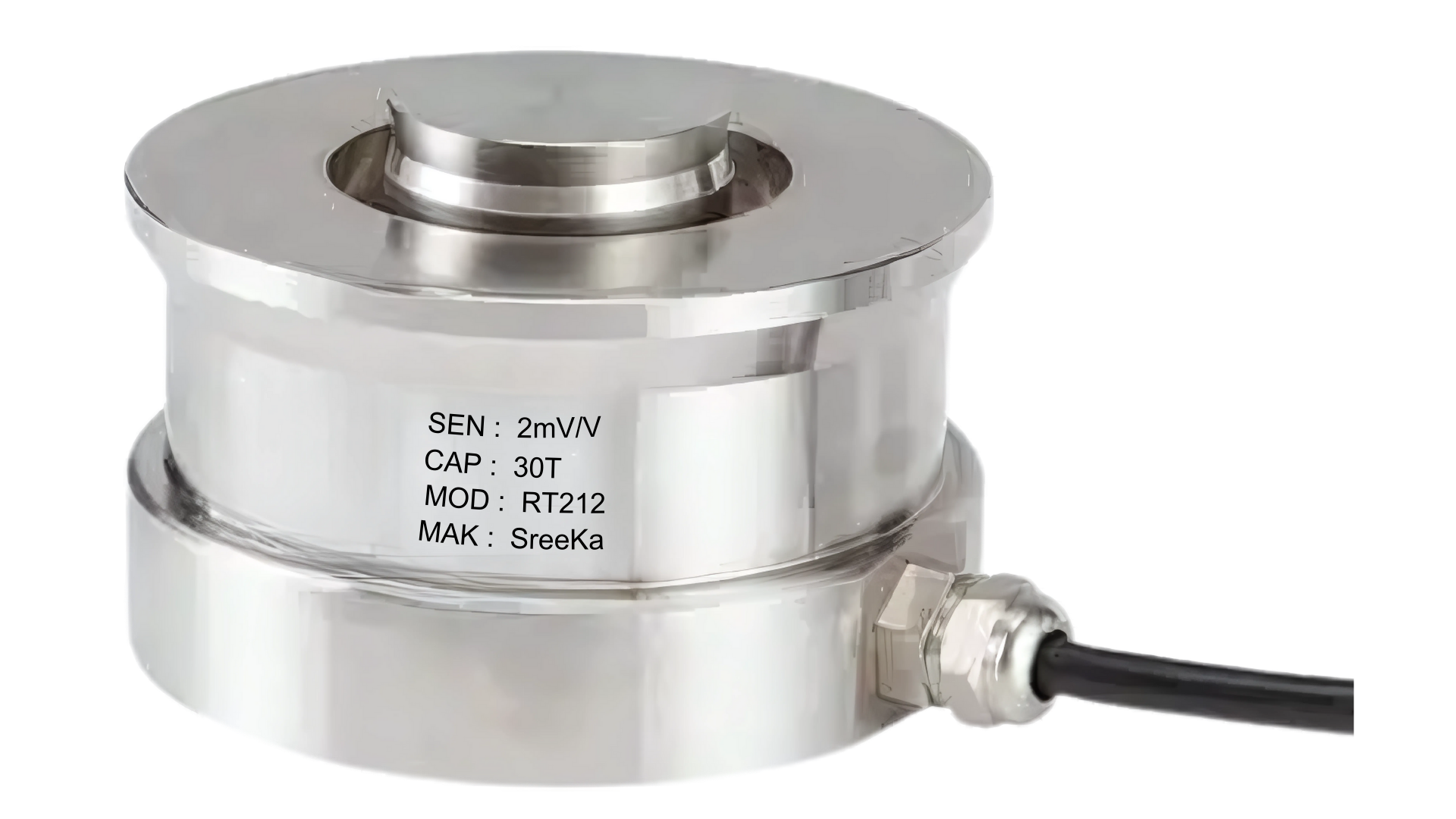

The Ring Torsion Load Cell is a highly accurate and compact sensor designed for industrial weighing applications such as tanks, silos, hoppers, and platform scales. Utilizing advanced ring torsion technology, it provides excellent resistance to side loads and ensures precise, repeatable measurements even under harsh operating conditions. With its low-profile design and robust construction, this load cell is ideal for installations with limited space and high mechanical stress. It offers long-term reliability and is available in various capacities to suit different industrial needs.
| Parameter | Value |
|---|---|
| Capacity |
2kN to 600kN, Custom capacity |
| Nominal Sensitivity | 2.0 mV/V |
| Operating Temperature Range |
-20°C to +80°C |
| Excitation | 10 - 12 VDC |
| Protection Class | IP67 |
| Material | Stainless Steel |
Ring Torsion Load Cell Data Sheet
