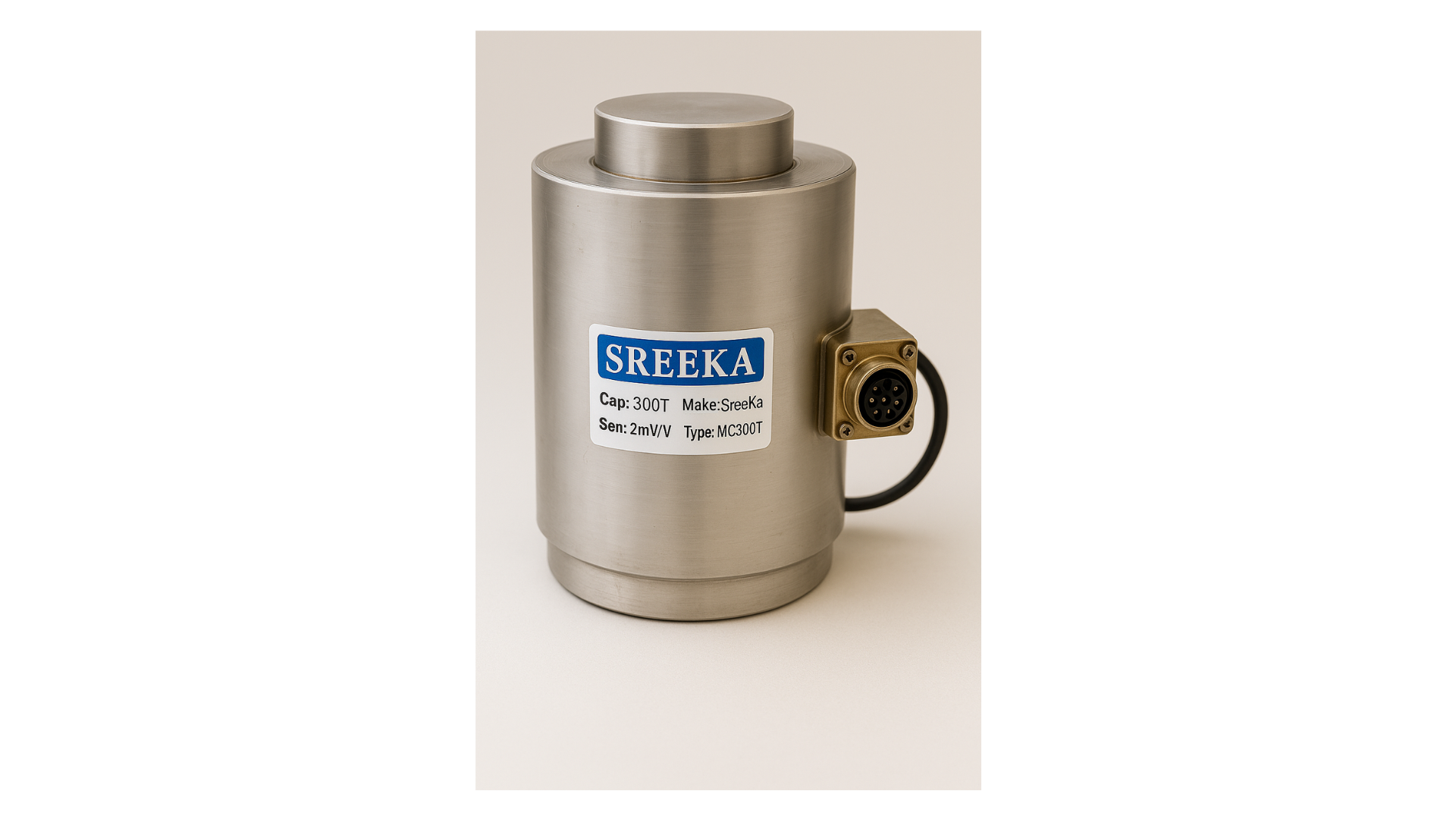

The Multi-Column Load Cell is a high-capacity compression sensor designed for exceptional accuracy and stability under heavy loads. Its multi-column design ensures even force distribution and minimizes off-center errors. Ideal for truck scales, silo weighing, and industrial press monitoring, it’s built from durable materials to withstand harsh environments.
| Parameter | Value |
|---|---|
| Capacity |
200K to 1M, Custom capacity |
| Nominal Sensitivity | 2.0 mV/V |
| Linearity |
0.03% FS |
| Excitation | 5 - 12 VDC |
| Protection Class | IP67 |
| Material | Alloy, Stainless Steel |
Multi Column Load Cell Data Sheet
